STZ Horizontal Screen

Detailed introduction

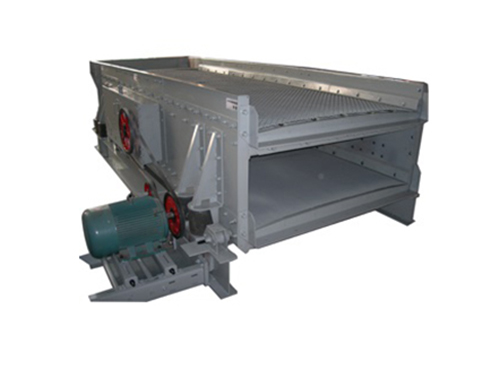

STZ Horizontal Screen

Description of STZ Horizontal Screen

1. It has three eccentric shafts and elliptical screening motion;
2. The vibration time, vibration amplitude and vibration direction angle are all adjustable;
3. Large exciting force and the oval trajectory pave the way for high performance screening and extremely accurate sizing;
4. Built of heavy duty steel side plates with no welding to insure structural integrity;
5. Support frames are ruggedly constructed and attached to the live frame with huck fasteners, all to assure extra rigidity and uniform vibration.
6. They are available in double or triple deck configurations in all sizes;
7. Screens can be either outfitted with a portable chassis or designed for stationary applications.

Application of STZ Horizontal Screen
It is popularly applicable for dry or wet screening of large, medium and small specification of materials, and especially suitable for crushing and screening mobile unit.

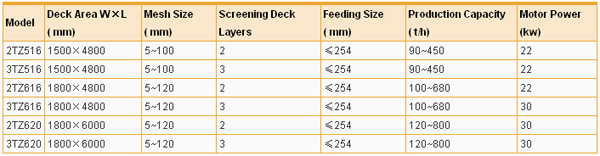

Technical Parameters of STZ Horizontal Screen
