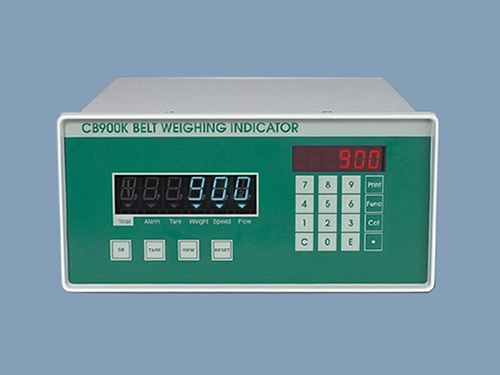

CB900K(Belt Weighing Indicator)

Detailed introduction



1.

Dual-display total display and data such as traffic or speed, or weight

2.

With power failure protection function • built-in speed pulse input

3.

Can be equipped with options in the form of current or voltage measurement • RS232/RS485 live interfaces to choose from

4.

Suitable for all strain-force sensors

5.

To control the feeding door switch

6.

Total output by the pulse mode

7.

Automatic dynamic skins

8.

Four optical coupler input

9.

Two alarm outputs

10.

Optional, such as current or voltage analogue output interfaces

11.

User optional analog output and input parameters

12.

Built-in real time clock and calendar

13.

Adjustable belt that shows flow

14.

Linearization of nonlinear system of flow can be

15.

Simple operation

16.

Sensor input sensitivity selectable

17.

All data can be modified by computer

18.

Sensor input sensitivity selectable

19.

Sensor input a/d conversion  speeds up to 50 times per second

20.

Has the keyboard lock function to prevent non-operational staff uses

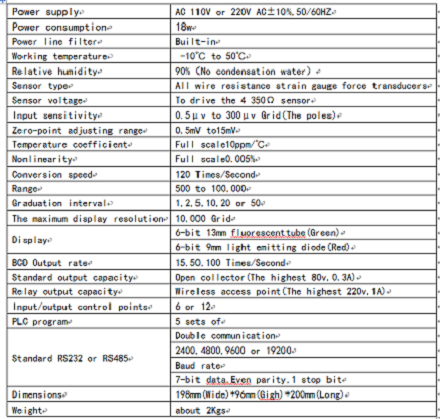

Parameters:
